Sky RC Digital Ride Height Guage

Sky RC Digital Ride Height Guage
$50.00

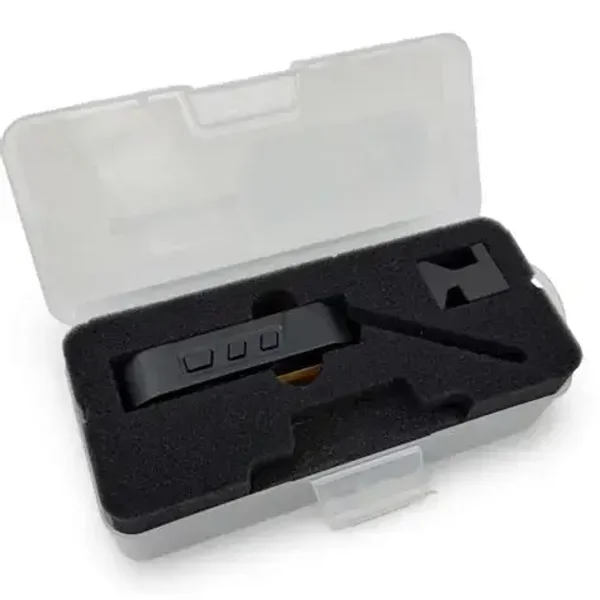

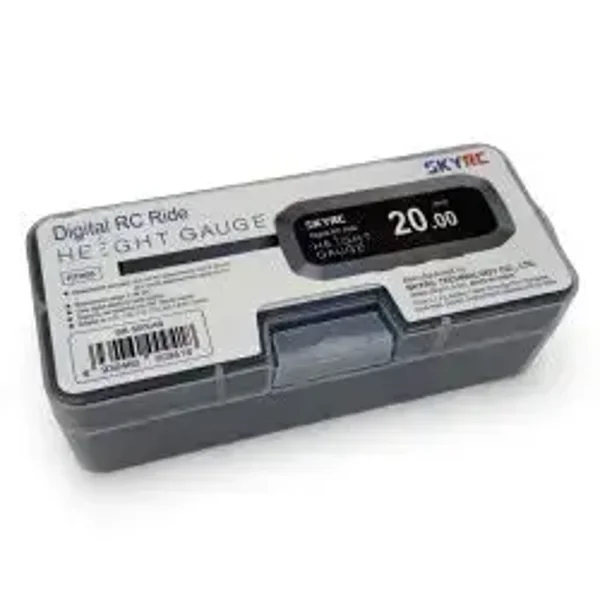

The SkyRC Digital Ride Height Gauge (SK‑500049) is a precision electronic tool designed to measure RC chassis ground clearance with accuracy, repeatability, and ease. It replaces traditional manual ride‑height gauges with a digital system that gives clear numeric readings, eliminating guesswork and improving setup consistency.



  • Digital measurement range: 2–38 mm

  • Accuracy:

    • ±0.3 mm from 2–20 mm

    • ±0.5 mm above 20 mm

  • 0.1 mm resolution using an onboard MCU and proprietary algorithm for stable readings.

  • Clear digital display with:

    • Unit switching (mm/in)

    • 180° screen rotation for easy viewing from any angle

  • Slim 2 mm measuring blade:

    • Reaches tight areas under the chassis

    • Defines the minimum measurable height

    • Rigid structure reduces flex for consistent readings

  • Multi‑point guided calibration:

    • Uses included calibration block

    • Calibrates at 2 mm, 10 mm, and 20 mm for reliable accuracy

  • Auto power‑off after 300 seconds of inactivity

  • Compatible with multiple scales:

    • 1/24, 1/14, 1/12, 1/10, 1/8 RC models



This is a limited supply of these and when they're gone they're gone.
